MCBH-6-FS pinout (RS-232) - RBRconcerto³, RBRmaestro³
The RBRconcerto3 variants with an elongated body and RBRmaestro3 instruments have MCBH-6-FS connectors with an serial pinout. This connector is intended for RBR sensors with an RS-232 output.
|
RBR properly installs all sensors included with your instruments. The MCBH-6-FS serial pinout will only be needed when an RBR sensor is shipped separately. If a spare connector may be required, it must be wired/activated at the time of purchase. |

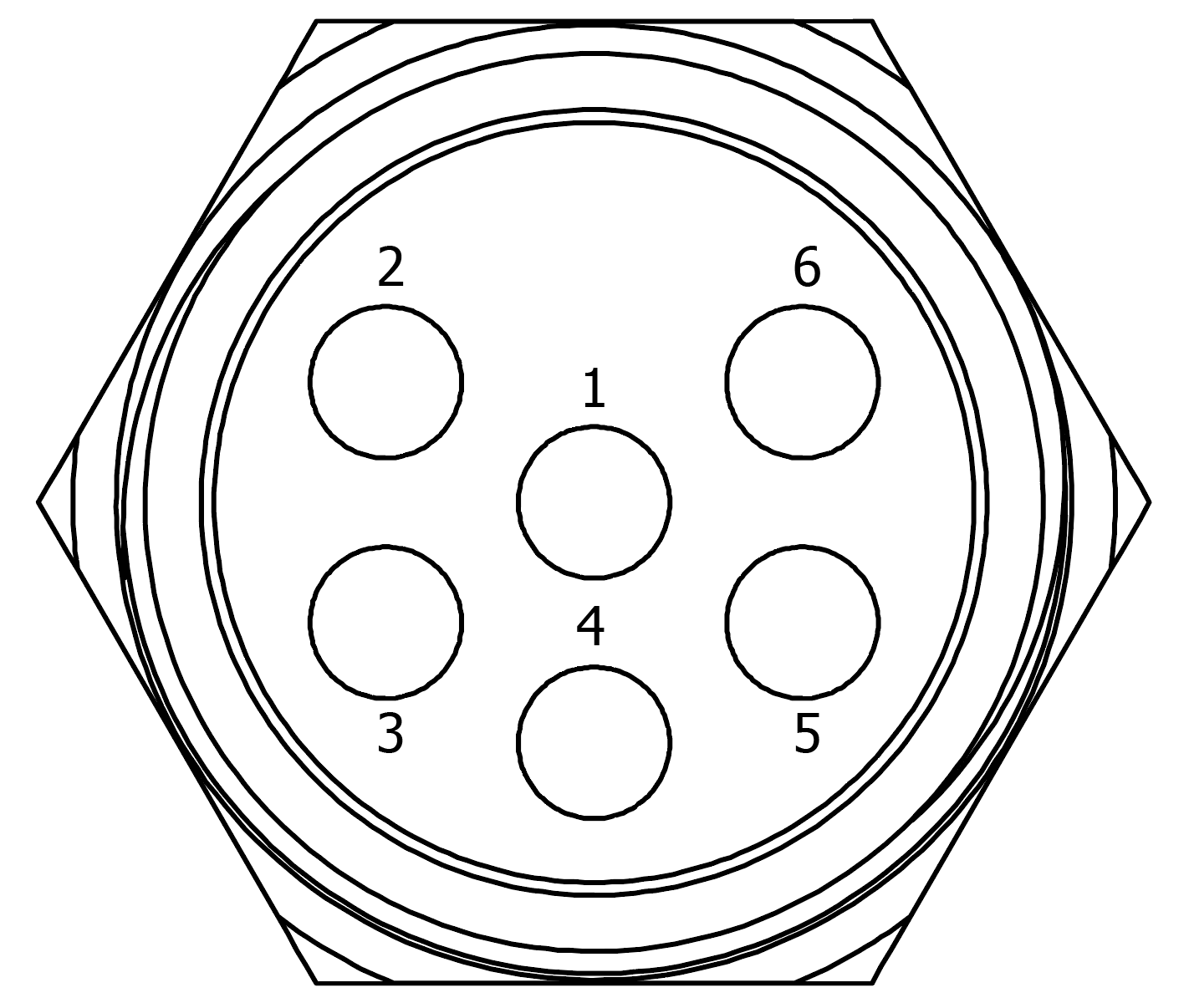

MCBH-6-FS (RS-232) connector pinout
|
Pin No. |
Definition |
1 |
Ground |
|
2 |
Power |
|
3 |
From the sensor (Tx) |
|
4 |
Into the sensor (Rx) |
|
5 |
N/C |
|
6 |
N/C |
Fig. 14. RBRconcerto3 with a factory-installed chl-a sensor and a spare MCBH-6-FS connector.
