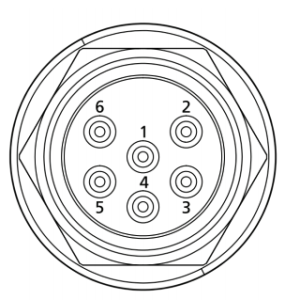

MCBH-6-MP pinout - sensors
All RBR smart sensors have an MCBH-6-MP connector to connect to your computer via RS-232 or to use for integrations with the RBR standard instruments.
|
Pin No. |
Definition |
1 |
Ground |
|
2 |
Power |
|
3 |
From the sensor (Tx) |
|
4 |
Into the sensor (Rx) |
|
5 |
N/C |
|
6 |
N/C |

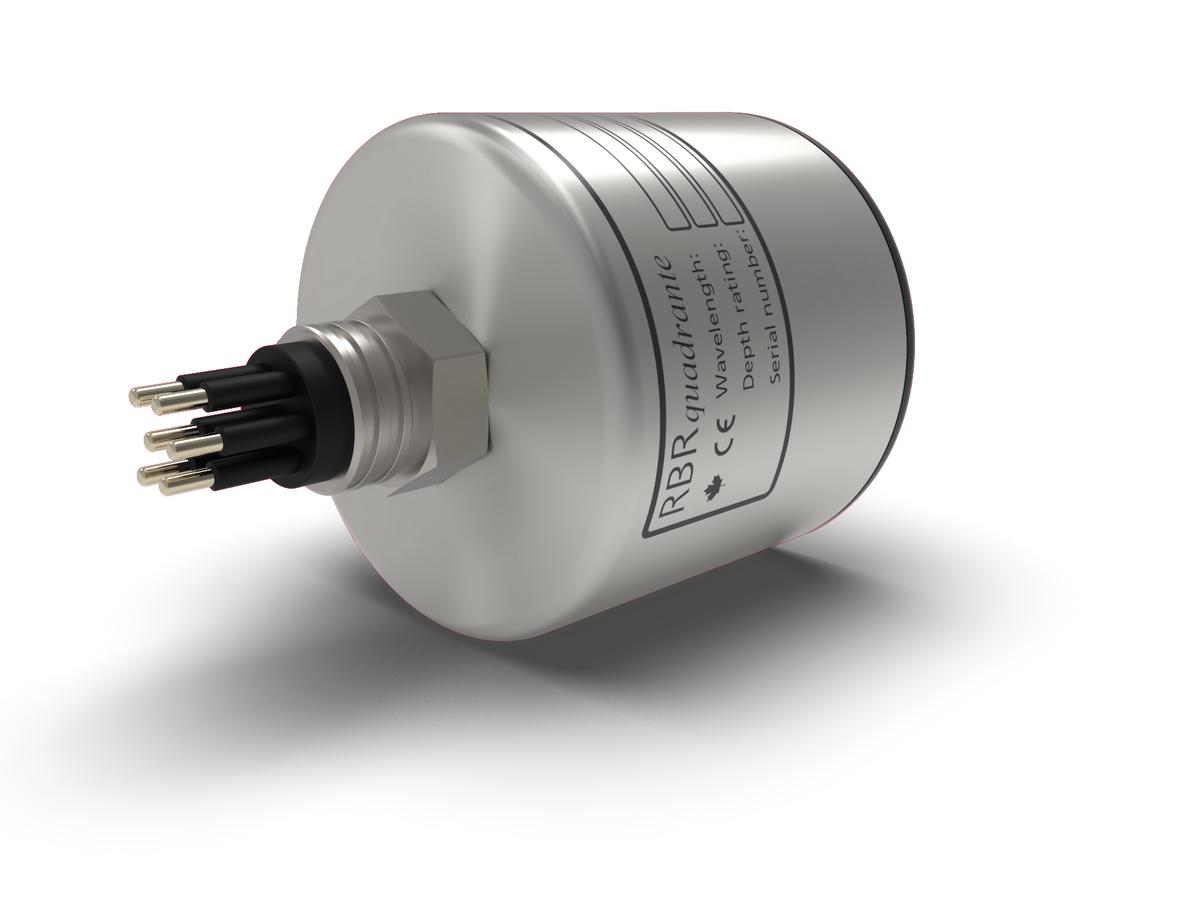

Fig. 11. RBRquadrante with an MCBH connector.
