MINK-10-FCR pinout - APT, BPR, BPR | zero
The RBRquartz³ APT comes with a MINK connector. The RBRquartz³ BPR and RBRquartz³ BPR | zero can be manufactured with MINK or MCBH connectors.

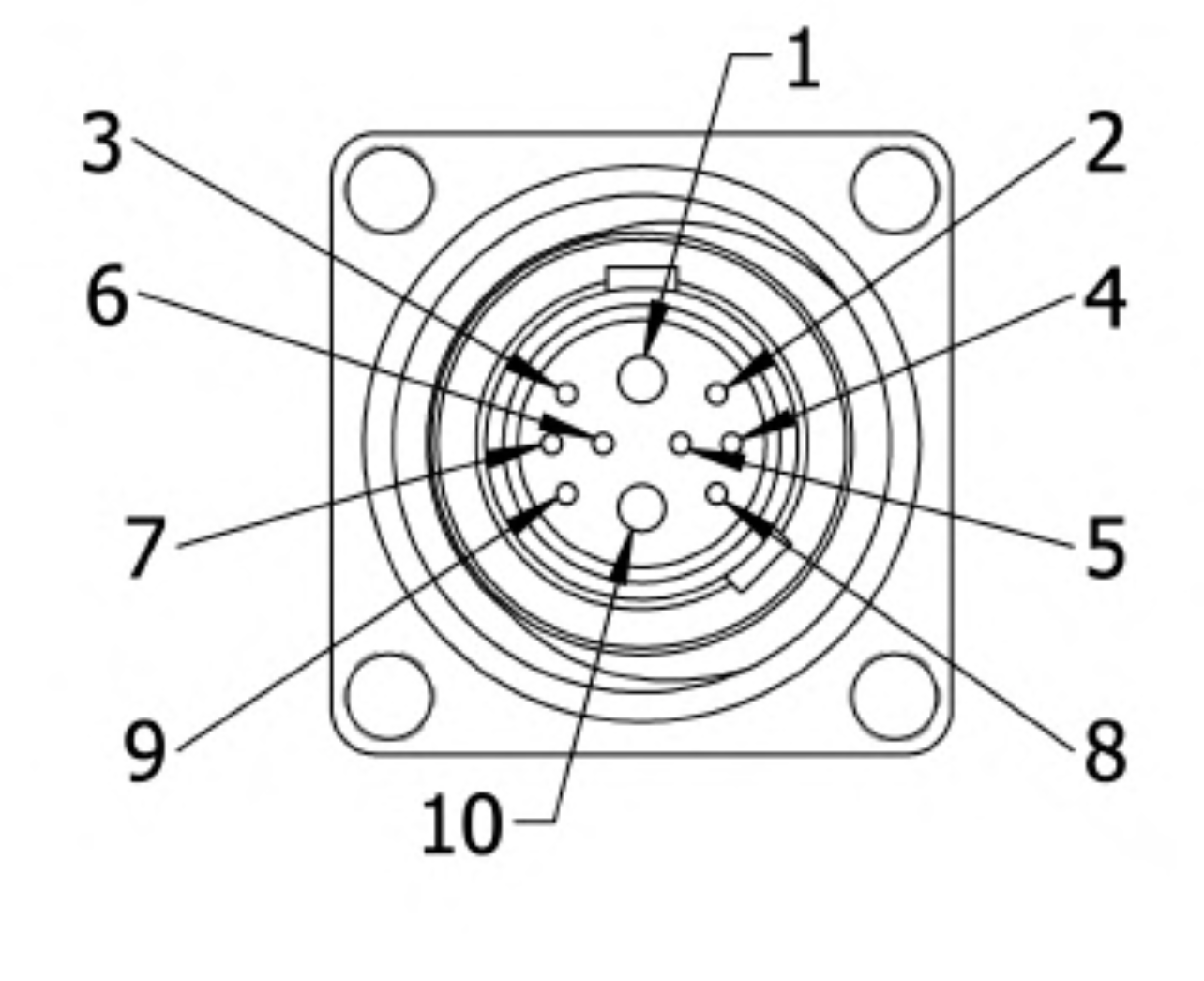

The MINK-10-FCR pinouts are very similar between the three types of instruments, the only difference being the RBRquartz³ BPR | zero has a more narrow power range.
|
Pin No. |
RS-232 |
RS-485 |
Ethernet |
1 |
Power: 4.5V to 30V (APT, BPR) or 9.5V to 30V (BPR | zero) |
|||
2 |
N/C |
From the instrument (Rx-) |
From the instrument (Tx+) |
|
3 |
N/C |
N/C |
Into the instrument (Rx+) |
|
4 |
From the instrument (Tx) |
Into the instrument (Rx+) |
From the instrument (Tx-) |
|
5 |
Ground |
|||
6 |
Into the instrument (Rx) |
From the instrument (Tx+) |
N/C |
|
7 |
N/C |
N/C |
Into the instrument (Rx-) |
|
8 |
N/C |
|||
9 |
N/C |
Into the instrument (Tx-) |
N/C |
|
10 |
Ground |
|||
|
The RBRquartz³ BPR | zero has a more narrow power range than other RBR instruments. |

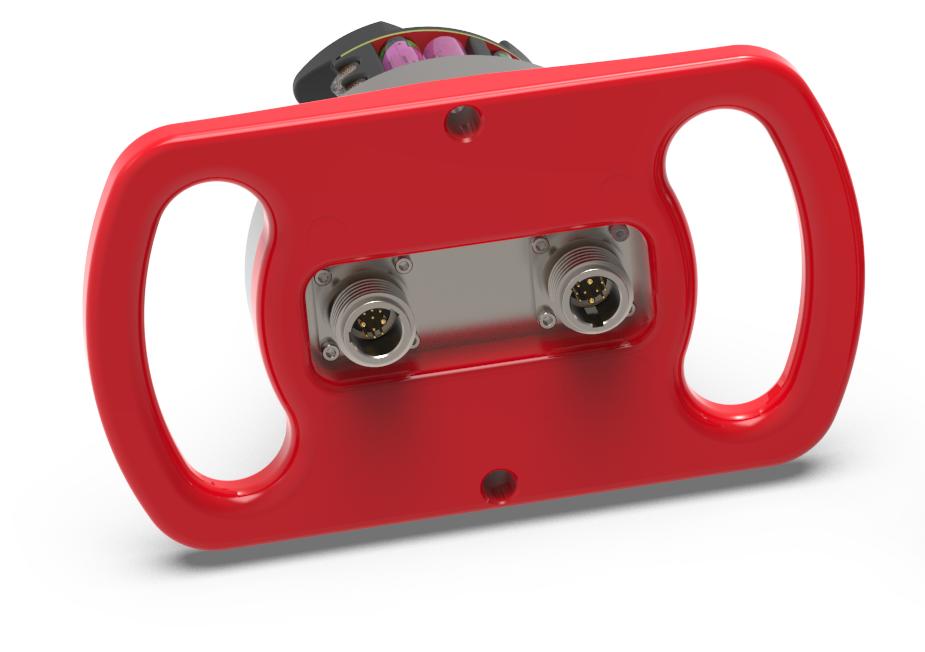

Fig. 17. RBRquartz³ BPR | zero end-cap with two MINK connectors.

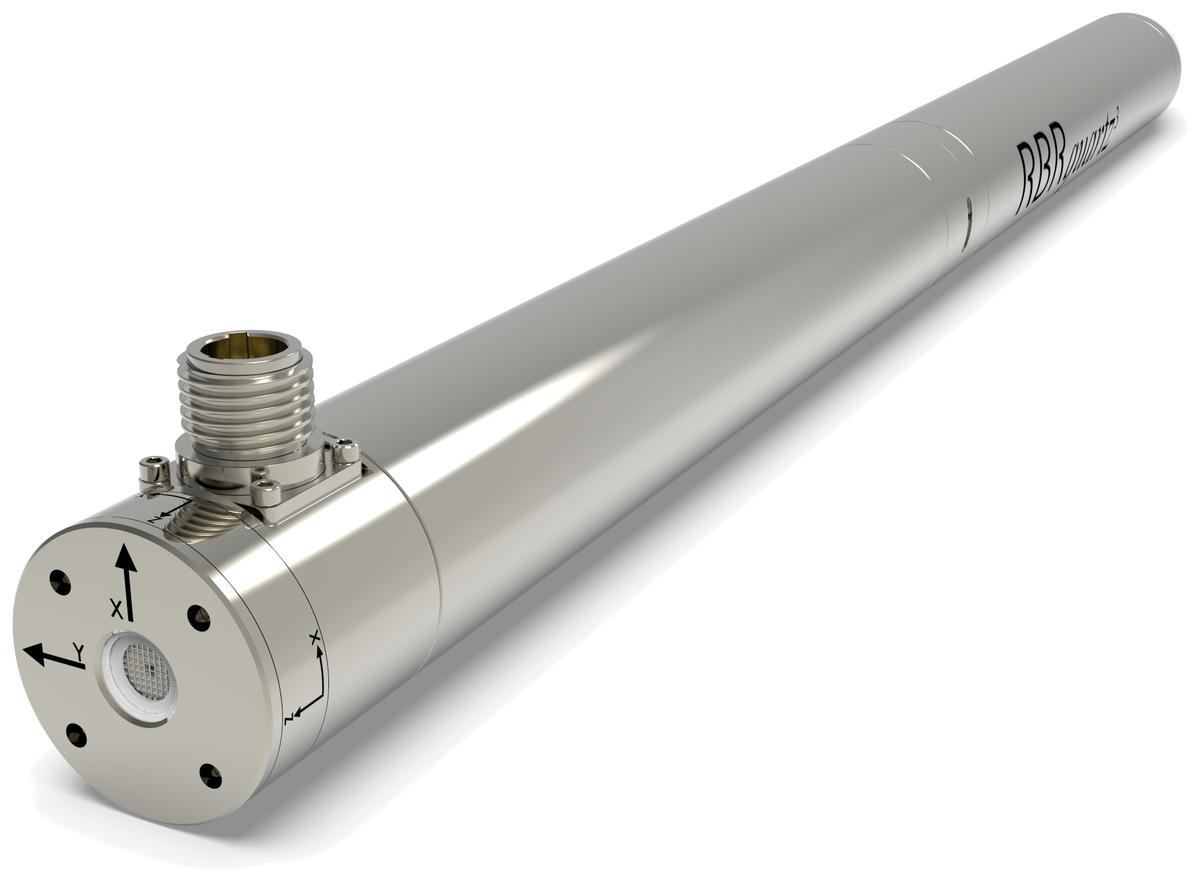

Fig. 18. RBRquartz³ APT with a MINK connector.
