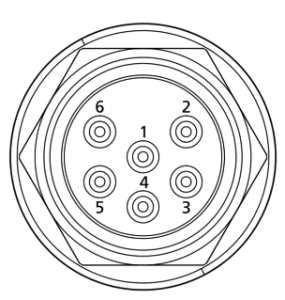

MCBH-6-MP pinout - BPR, BPR | zero
The RBRquartz³ BPR and RBRquartz³ BPR | zero may be configured with MCBH-6-MP connectors, which can be used for connecting via USB, RS-232, RS-485, or Ethernet, depending on the wiring selected at the time of purchase.
|
Pin No. |
USB |
RS-232 |
RS-485 |
Ethernet |
1 |
Ground |
||||
2 |
Power: 4.5V to 30V (BPR) or 9.5V to 30V (BPR | zero) |
||||
3 |
N/C |
From the instrument (Tx) |
From the instrument (Tx-) |
From the instrument (Tx-) |
|
4 |
Power: 5V |
Into the instrument (Rx) |
Into the instrument (Rx+) |
Into the instrument (Rx+) |
|
5 |
D- |
N/C |
Into the instrument (Rx-) |
Into the instrument (Rx-) |
|
6 |
D+ |
N/C |
From the instrument (Tx+) |
From the instrument (Tx+) |
|
.
|
The RBRquartz³ BPR | zero has a more narrow power range than other RBR instruments. |
.

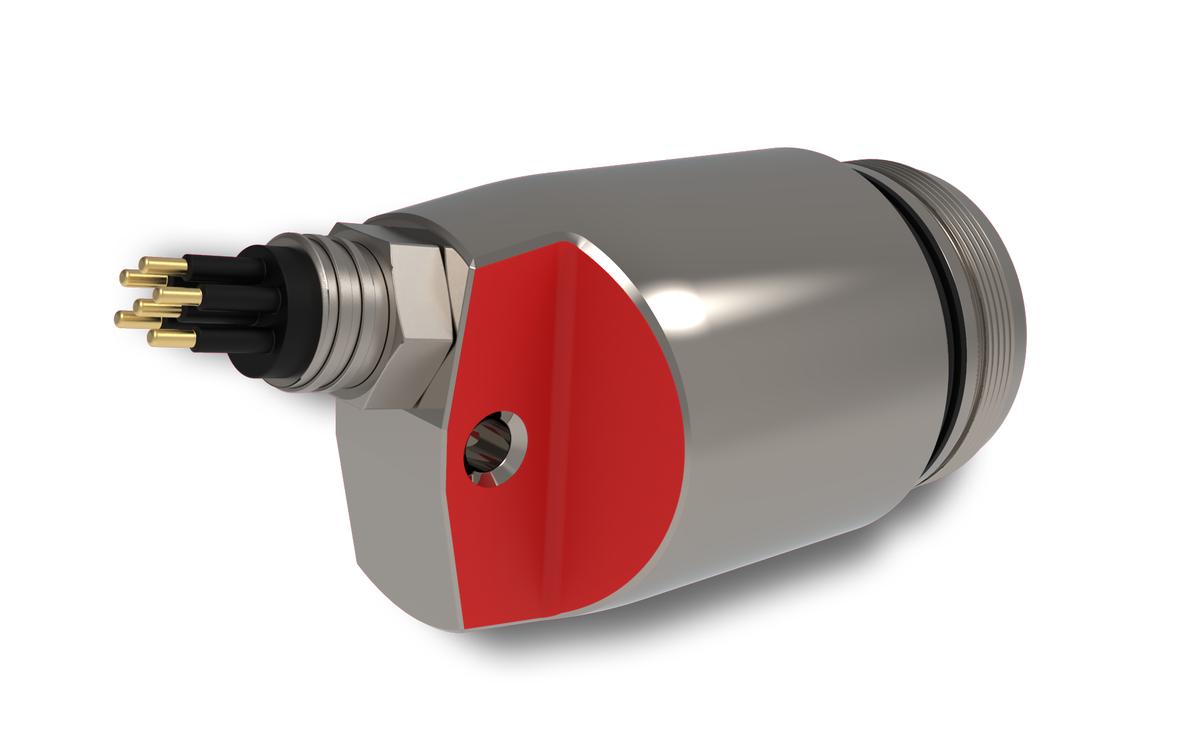

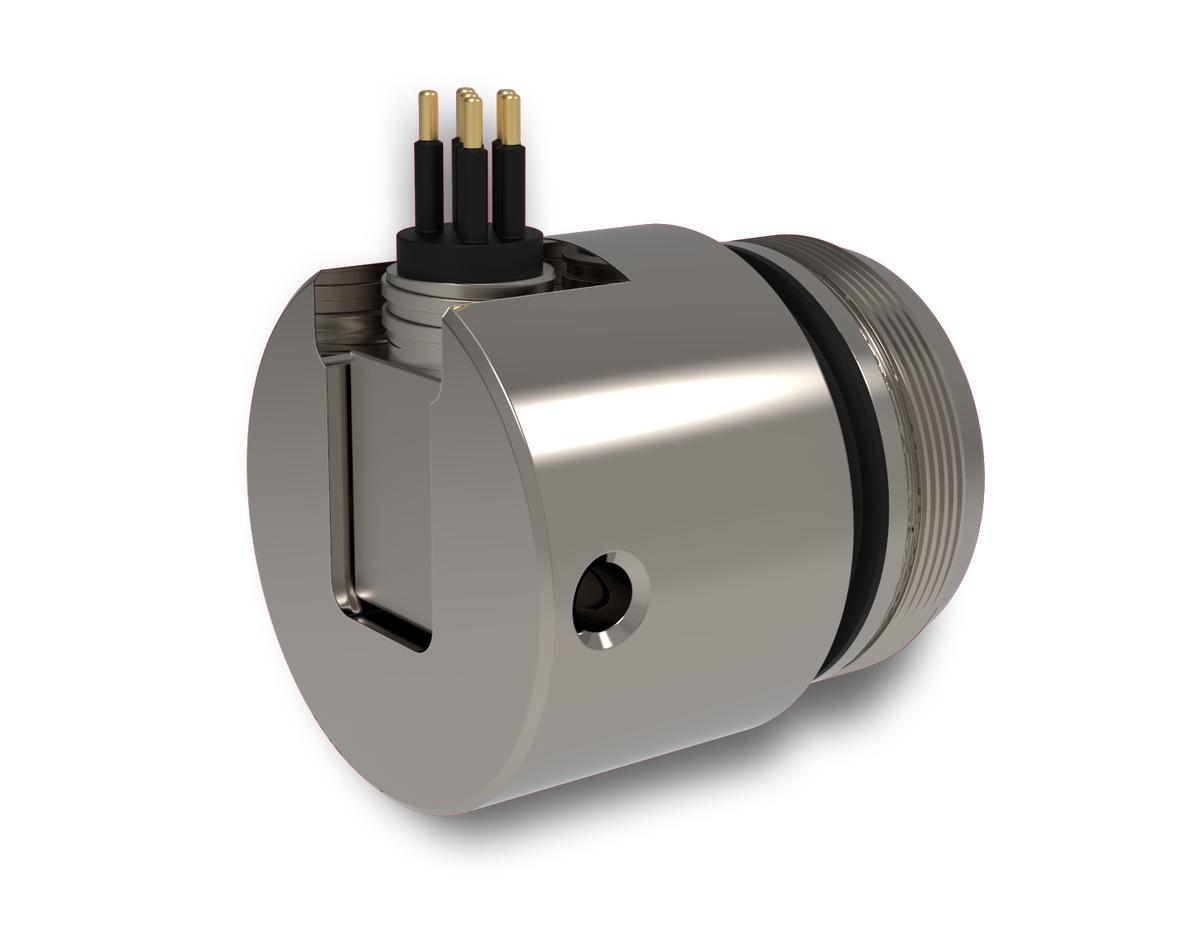

Fig. 15. RBRquartz³ BPR connectorised end-caps: BEC12 and BEC13.

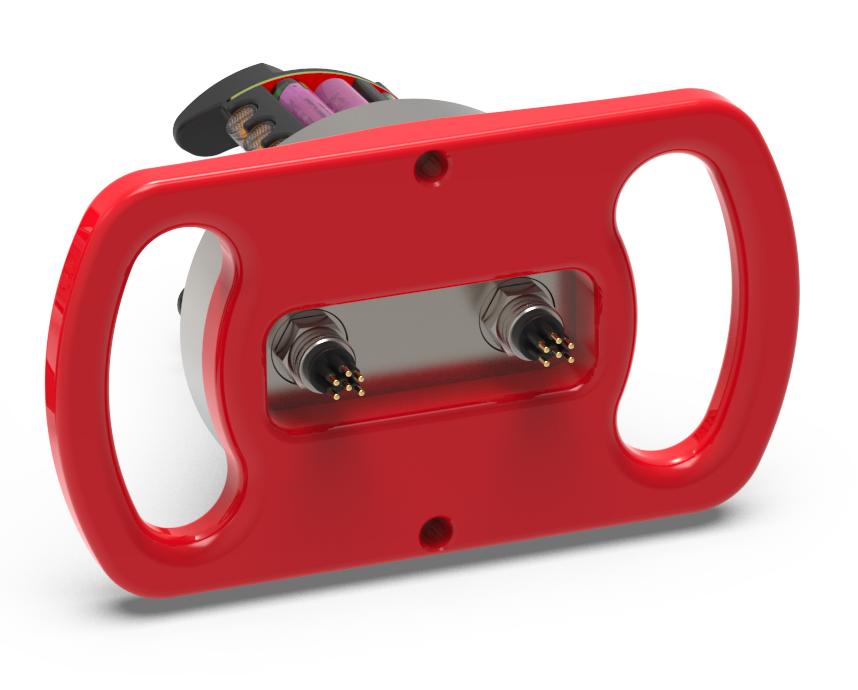

Fig. 16. RBRquartz³ BPR | zero end-cap with two MCBH connectors.
